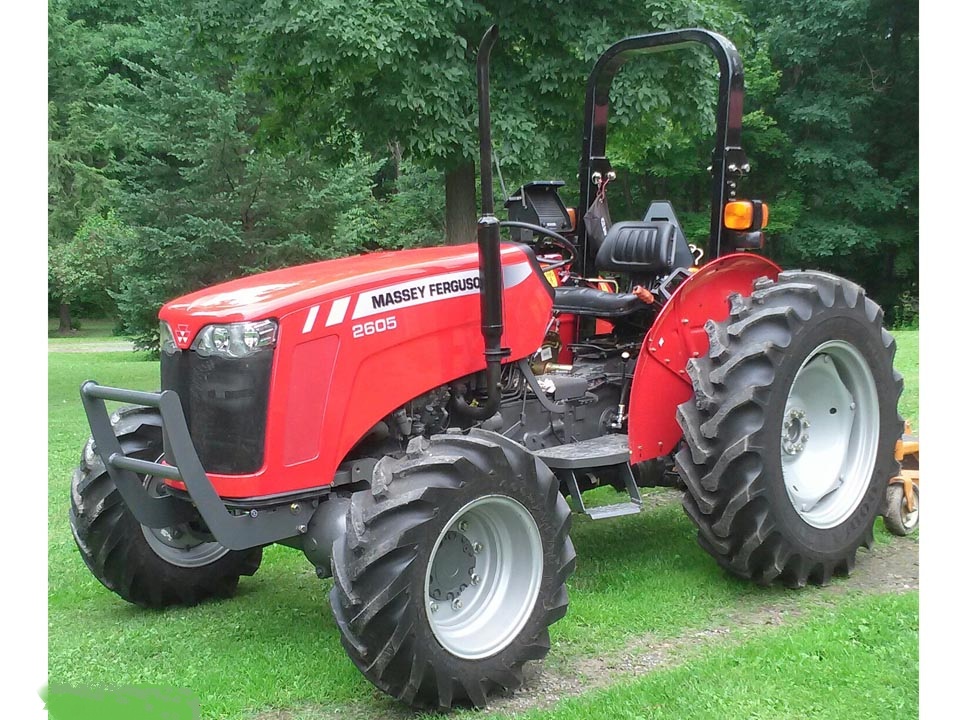

Massey Ferguson 2605
Specifications
Make & Model
Make
|
Massey Ferguson
|
Model
| 2605, Simpson Engine |
Drive
|
2WD/4WD
|
Engine
Type
|
4 Stroke, DI, Diesel
|
Horse Power
|
38.5 HP
|
No. of Cylinders
|
3
|
Pump
|
inline
|
Rated RPM
| 2000 |
Cubic Capacitya
| 2500 cc |
Transmission
Type
|
Constantmesh
|
No. of Gears
|
8F + 2R
|
Forward Speed
|
29 km/h
|
Reverse Speed
|
-
|
Hydraulics
Hydraulic pump
|
Live
|
Pump Flow
|
34 L/min
|
Operation
|
DC and PC levers
|
Pump Type
|
Gear Pump
|
Lift Capacity
|
12 Quintile
|
Steering
Type
|
Power Steering or Mechanical
|
Oil Pump
|
-
|
Power Take Off (PTO)
Type
|
Live PTO
|
PTO HP
|
34.5 HP
|
No. of Spline
|
6
|
PTO RPM
|
540
|
Clutch
Type
|
Single/Dual
|
Size
|
305 mm
|
Cooling & Cleaning
Type
|
Forced water cooled
|
Air Cleaner
|
Oil bath type
|
Electrical
Battery
|
12V 88AH battery
|
Alternator
|
2V, 35A
|
Starter
|
12V , 2.5 kW
|
Brake
Type
|
Drum Brake kes
|
Actuation
|
Mechanical Actuation
|
TIRE
Front Tires
|
6-00, 8 Ply Rating/10.5-18
|
Rear Tires
|
12.4-28, 12 Ply Rating/ 13.6-28
|
DIMENSIONS
| TOTAL LENGTH | |
| TOTAL WIDTH | 1680 mm |
| TOTAL WEIGHT | 2150 kg |
| TURNING RADIUS |
