MAHINDRA HARVEST MASTER 2WD



MAHINDRA HARVEST MASTER 2WD : COMBINE HARVESTER

Mahindra HarvestMaster H12 2WD Tractor Harvester is an efficient machine for farming in India. The farmers are extensively using Mahindra HarvestMaster H12 2WD Multicrop harvester for their farms. In addition, Mahindra HarvestMaster H12 2WD harvester features are also excellent.

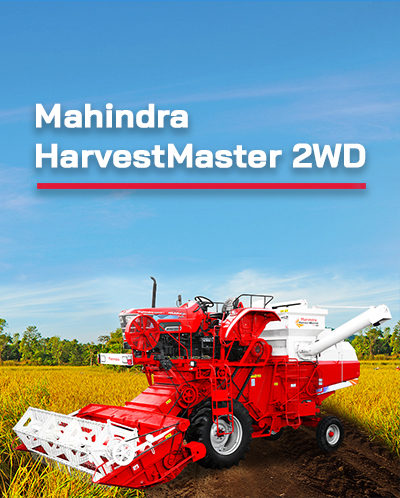

Mahindra HarvestMaster H12 2WD is a multi-crop tractor mounted combine harvester, also called tractor harvester or TMCH and has been designed and developed by Mahindra as a perfect match for the Mahindra Arjun Novo series of tractors. This tractor mounted combine harvester or tractor harvester delivers superior performance in both dry and semi-wet conditions. This tractor harvester can be used for harvesting paddy, wheat, soybean and several pulses.

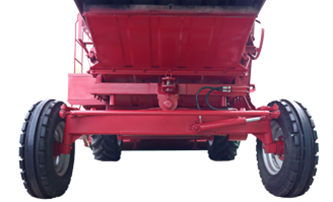

Tractor front tyres and cutter bar trolley tyres are of the same type. So, the cutter bar trolley tyres can be used as spare tyres for the harvester box.

• High ground clearance of 418 mm without increasing the height of the tractor combine harvester allows ease of movement between fields and over bunds without damaging the harvester.

• Additional fuse box in wiring harness box enhances safety against fire-hazard due to electric spark.

• Straw gets wrapped on the thresher bearing. A thresher bearing cover is provided to reduce fire hazard.

• Cover on the crankshaft ensures that straw does not fall or get stuck on chassis edge.

•


SPECIFICATIONS

Model Name	Mahindra Harvest Master H12 2WD
Tractor
Model	Arjun Novo 605 DI-i
Engine Power kW (HP)	42 kW (approximately 57 HP)
Drive Type	2WD
Cutter Bar Assembly
Working Width (mm)	3580
Cutting Height (mm)	30-1000
Cutter Bar Auger	Diameter-575 (mm) X Width-3540 (mm)
Number of Knife Blades	49
Number of Knife Guards	24
Knife Stroke (mm)	80
Reel Assembly
Range of Speed at Engine (r/min)
Minimum r/min	30
Maximum r/min	37
Reel Diameter (mm)	885
Thresher Mechanism
Paddy
Thresher Drum
Width (mm)	1120
Diameter of Thresher Drum (mm)	592
Range of Speed at Engine r/min
Minimum r/min	600
Maximum r/min	800
Concave
Range of Adjusting Clearance	Front (mm) 12 to 30
	Rear (mm) 16 to 40
Adjustment	An adjustment lever is provided at RHS of operator for adjusting the clearance
Cleaning Sieves
Number of Upper Sieves	2
Upper Sieve Area (m2)	1.204/0.705
Lower Sieve Area (m2)	1.156
Straw Walker
Number. of Straw Walkers	5
Number of Steps	4
Length (mm)	3540
Width (mm)	210
Capacity
Grain Tank (kg)	Paddy: 750 kg
Grain Tank (m3)	1.2
Tyre
Front (Drive wheels)	16.9 -28, 12 PR
Rear (Steering wheels)	7.5-16, 8 PR
Overall Dimensions
Length with trailer/without trailer (mm)	10930/6630
Width (mm)	2560
Height (mm)	3730
Ground Clearance (mm)	422
Mass of Tractor Mounted Combine Harvester (kg)	6750
Chassis Width (m)	1.1684
Track Width
Front (mm)	2090
Rear (mm)	1920
Minimum Turning Diameter
With Brake (m)	7.8/8.0
Without Brake (m)	13.6/13.9

• Two speed dual pulley option lets customer select the speed depending on crop and crop density. This makes the TMCH suitable for use in different field co

• Windows are provided for easy viewing and inspection of concave settings of the tractor combine harvester.
• nditions.

• Additional lights give better visibility for working at night allowing the farmer to work for longer hours.

• Localized cost-effective safety guards with fine mesh are provided on all moving parts for operator’s safety.
