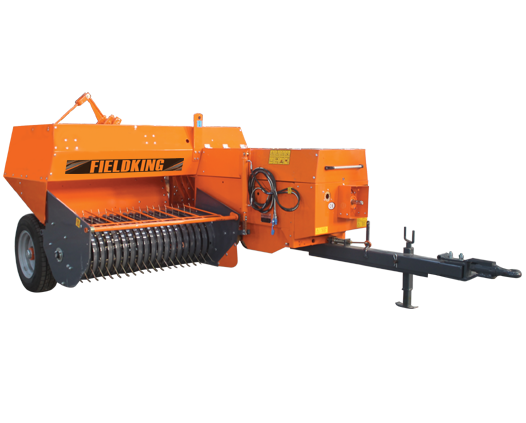

Fieldking Square

Square Baler

The square baler is designed to collect and compress grass, hay or straw into bales.
The large diameter of the feeder and its specially bent prongs guarantee continuous and clean pick-up at high operation speed.
Slip clutch and shear bolt to secure the baler transmission under difficult operating conditions and high loads.
The length of the bales can be adjusted in the range 0.3 up to 1.3 m.
Adjustable drawbar to ensure correct hitching.

Specification

A Baler is a agricultural implement which is used to collect crop residues of crops such as hay, cotton, flax straw, salt marsh hay, or silage and converts into compact bales that are easy to handle, transport, and store. There are different types of balers present in market based on shape of bales produced– rectangular or cylindrical of various sizes, bound with twine, strapping, netting, or wire .

The key specifications of Square Baler:

The square baler is designed to collect grass, hay or straw and then perfectly converts into bales.
It guarantee continuous and clean pick-up at high operation speed due to its large diameter of the feeder and its specially bent prongs.
Even under difficult operating conditions and High loads, the Fieldking square baler can secure the baler transmission by Slip clutch and shear bolt use.
It can produce bales of different lengths in the range 0.3 m to 1.3 m.
Adjustable draw bar to ensure correct hitching.
The Fieldking square baler has a pick-up width of 73 inches or 1850 mm.
The Bale chamber has 18 inches width and 14 inches height.
It bale length could range from 12 inches to 51 inches.
The PTO shaft runs at a 540 rpm.
It has 4 binding twine capacity and 2 number of knotters.
It has a hydraulic type pickup lifting.
The Fieldking square baler has a dimension of 166 inches length, 96 inches width and 64 inches height.
It requires a minimum of 35-50 HP tractor to operate.
Some of the optional equipment that is found with Fieldking square baler are: Hydraulic moving of the draw bar, Bale chute, Hydraulic pick-up adjustment and Feeding Wheel.

Brand

Fieldking

Model Name

Square

Implement Type

Baler

Implement Power

35-50 HP

Price

Get Best Price

Fieldking Square at an affordable price. We provide every detail regarding Fieldking Square like mileage, features, performance, price and others.

Is Fieldking Square perfect for farming?

Yes, it provides effective work on the field that makes Fieldking Square perfect for farming. It comes under the Baler Category. And, it has 35-50 HP Implement Power that provides fuel efficient work. It is an implement that comes from the Fieldking brand house known for its superb quality niches.

What is the Fieldking Square price?

Fieldking Square price is available at Tractor info. You can just log on to us and register your number. After that, our customer support team will help you out with Fieldking Square. For further, you have to stay tuned with us.

The square baler is designed to collect and compress grass, hay or straw into bales.
The large diameter of the feeder and its specially bent prongs guarantee continuous and clean pick-up at high operation speed.
Slip clutch and shear bolt to secure the baler transmission under difficult operating conditions and high loads.
The length of the bales can be adjusted in the range 0.3 up to 1.3 m.
Adjustable drawbar to ensure correct hitching.

Technical Specifications
Model	FKSB-511
Pick-Up Width (mm / Inch)	1850 / 73"
Baler Chamber(Width x Height) (mm / Inch)	460 / 18" x 360 / 14"
Baler Length(SmoothAdjustment)(mm / Inch)	300 / 12"-1300 / 51"
PTO Shaft Speed(rpm)	540
No. of Knotter	2
Binding Twine Capacity	4
Pick-Up Lifting	Mechanical
RH Standard Tire Size	185R15C
LH Standard Tire Size	10.0-75/15.3
Gauge Wheels	Steel Wheel
Draw Bar Lifting	Mechanical
Optional Equipment	(a) hydraulic moving of the draw bar (b) hydraulic pick-up adjustment (c) bale chute (d) feeding wheel
Dimensions (L x W x H)(mm / Inch)	4220 / 166"
Weight (kg / lbs Approx)	1330 / 2932
Tractor Power (HP)	35-50
